L1800 A3+ DTF Printer E13
ⓘ

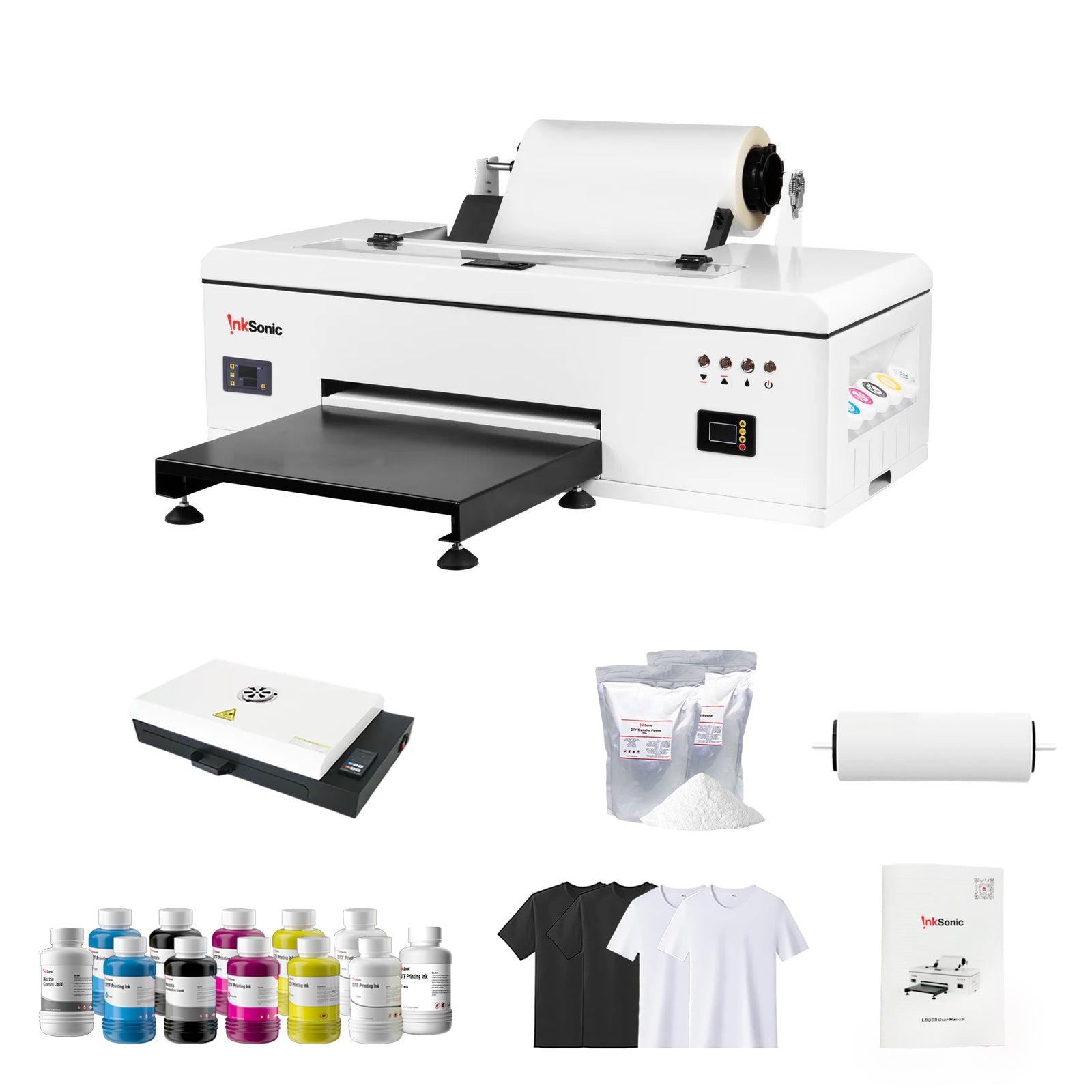

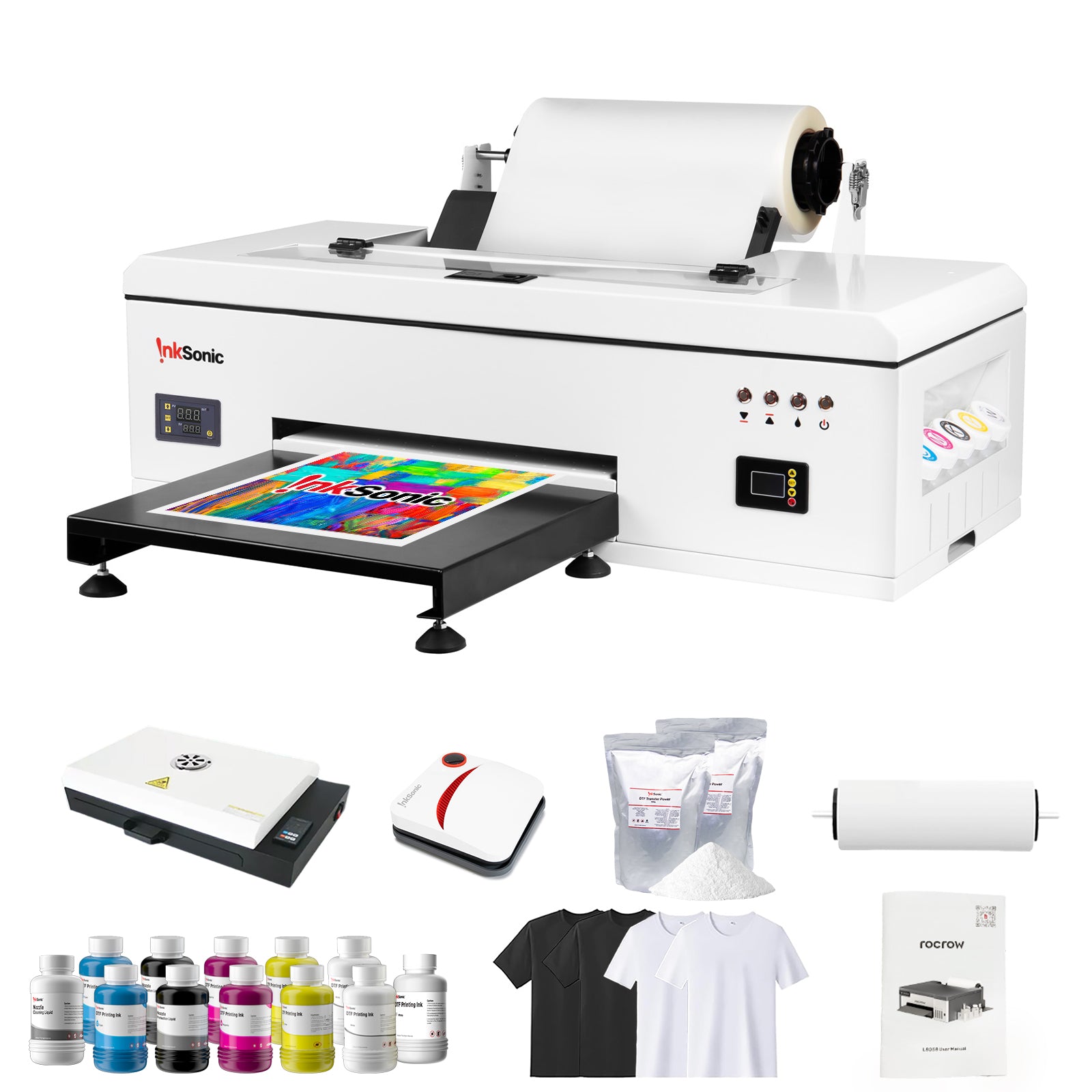

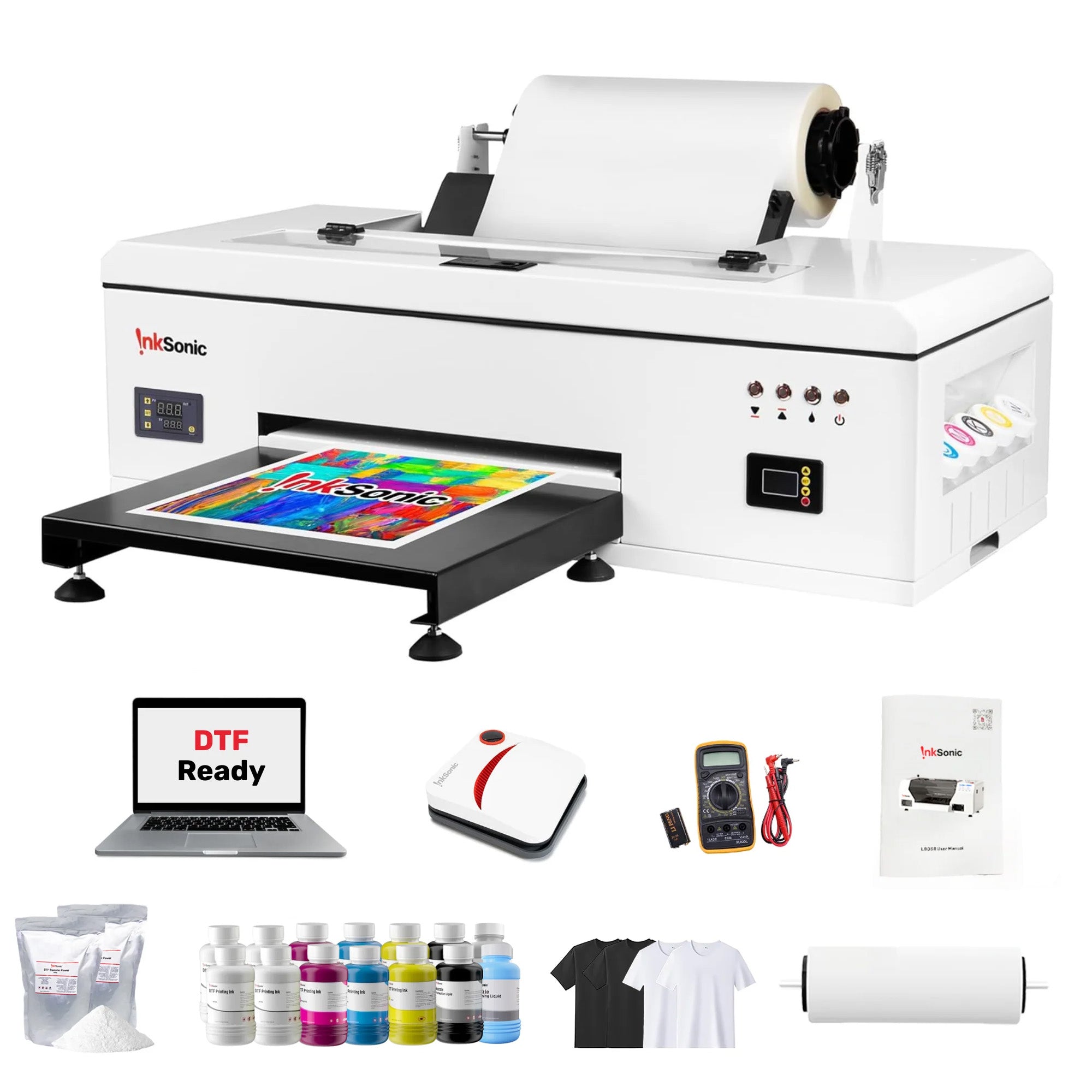

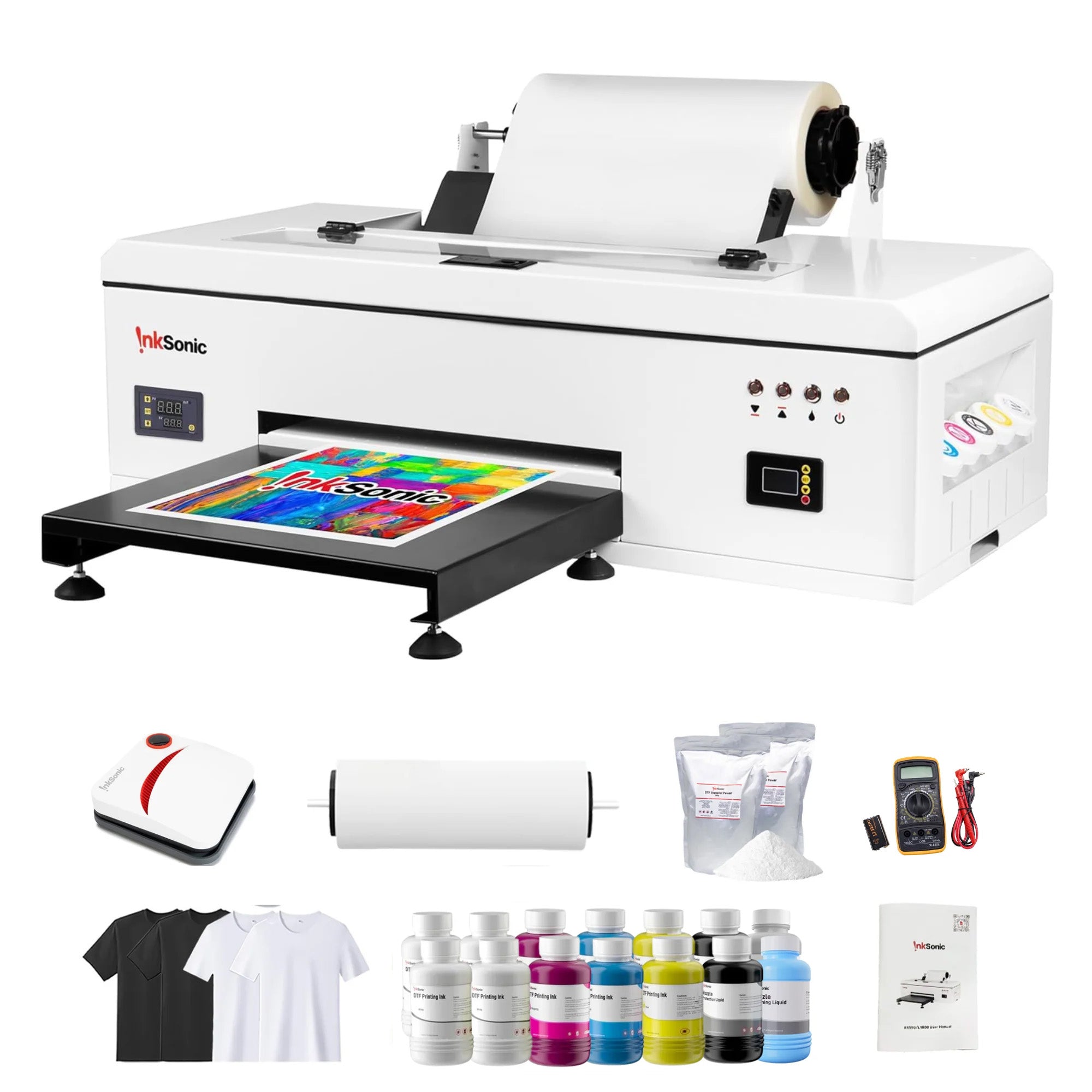

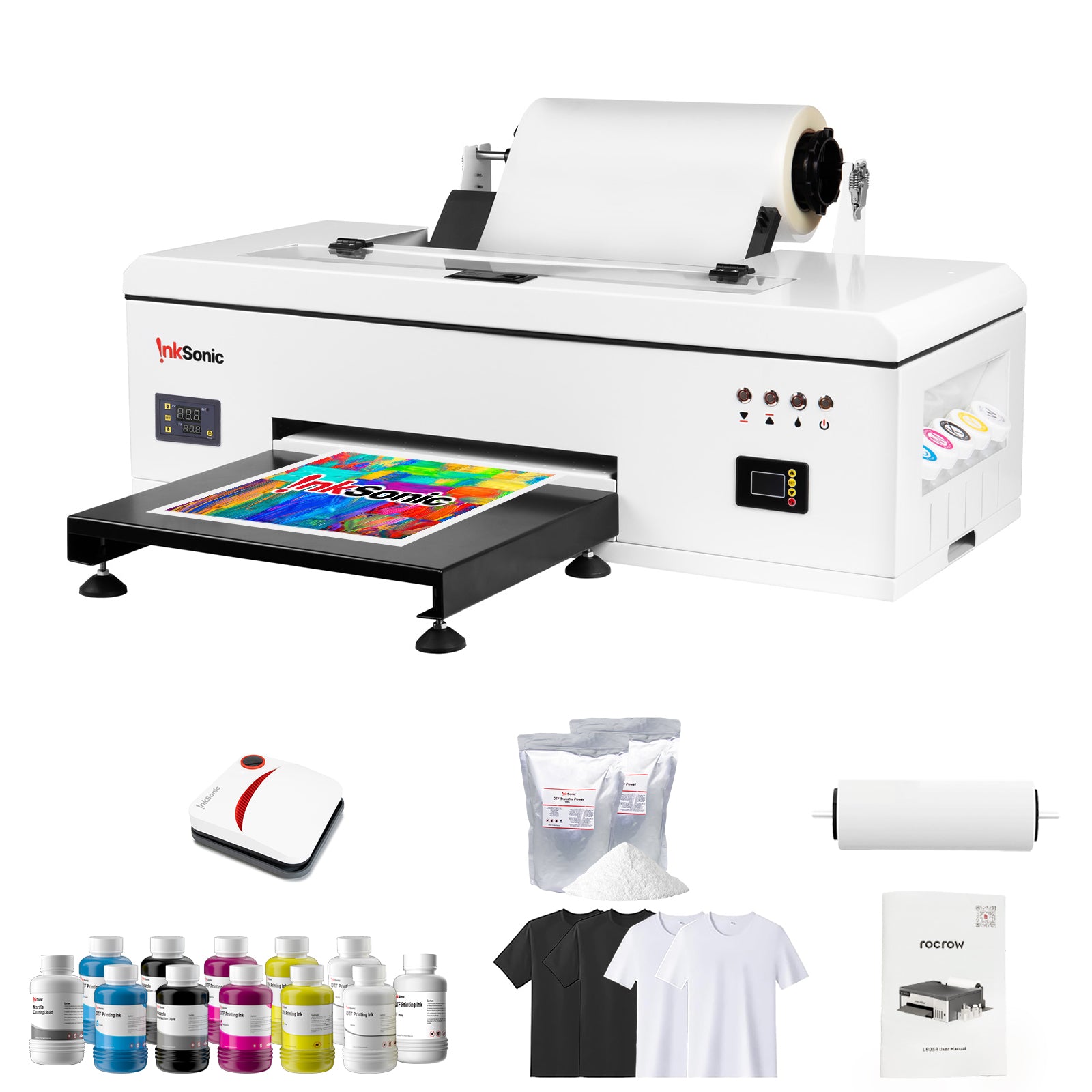

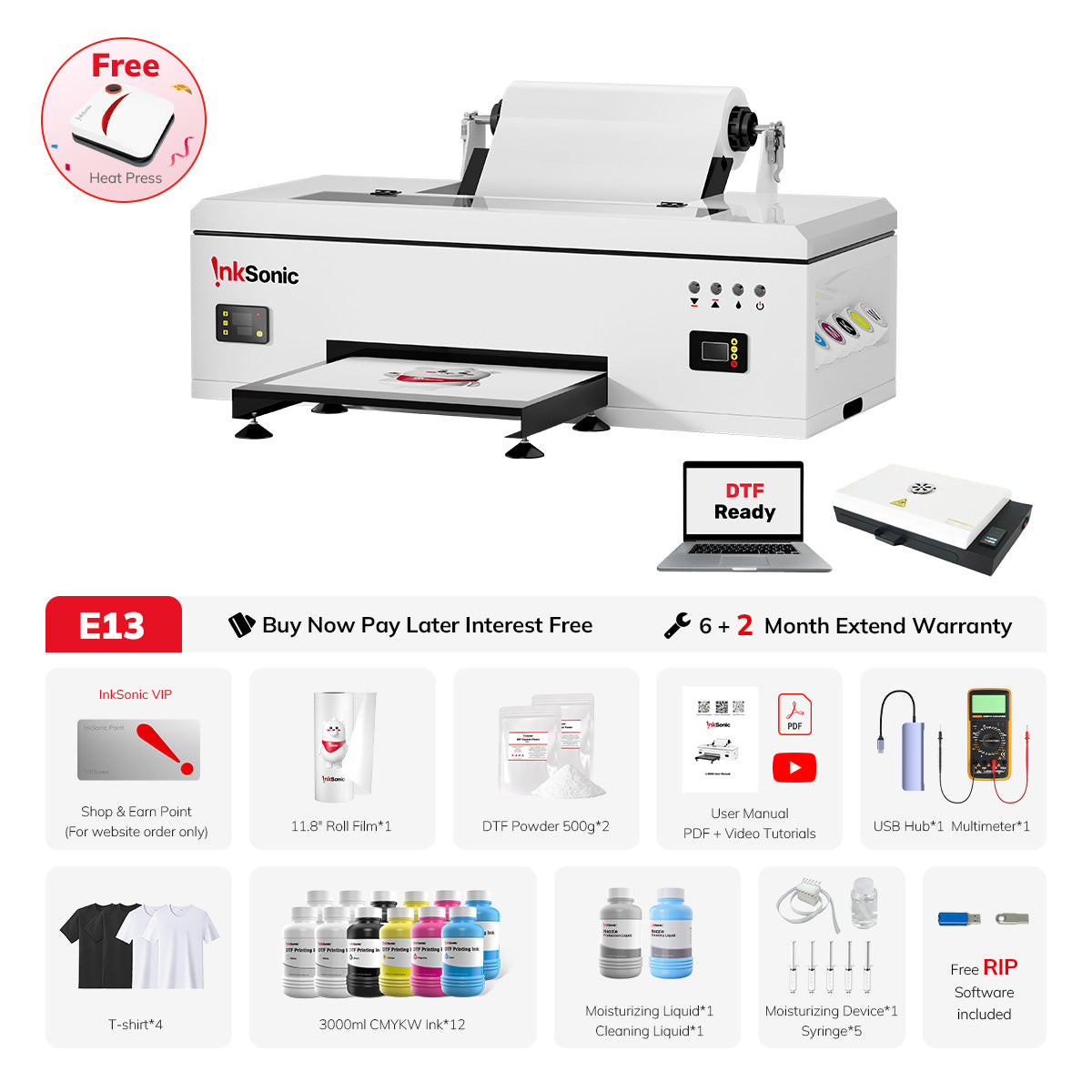

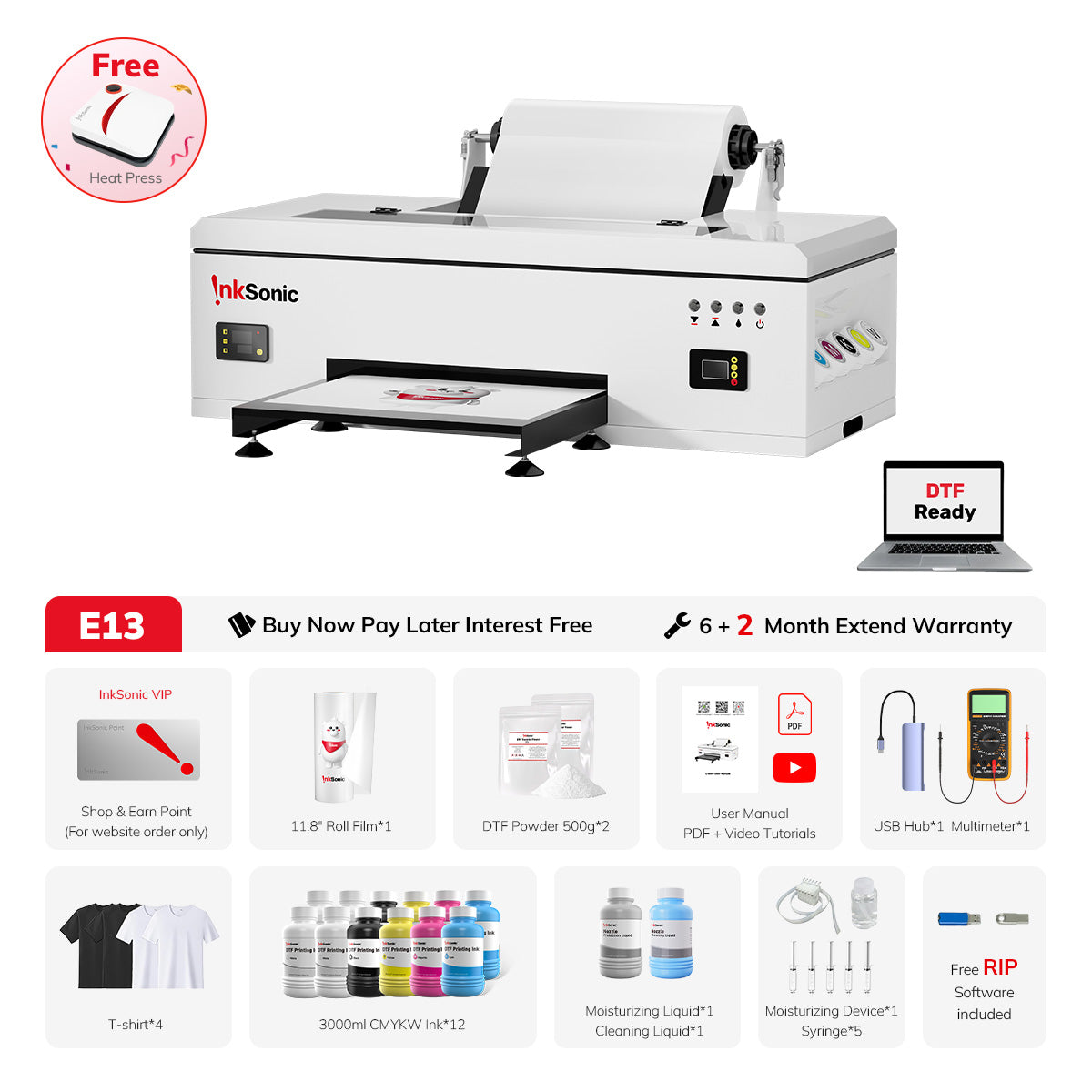

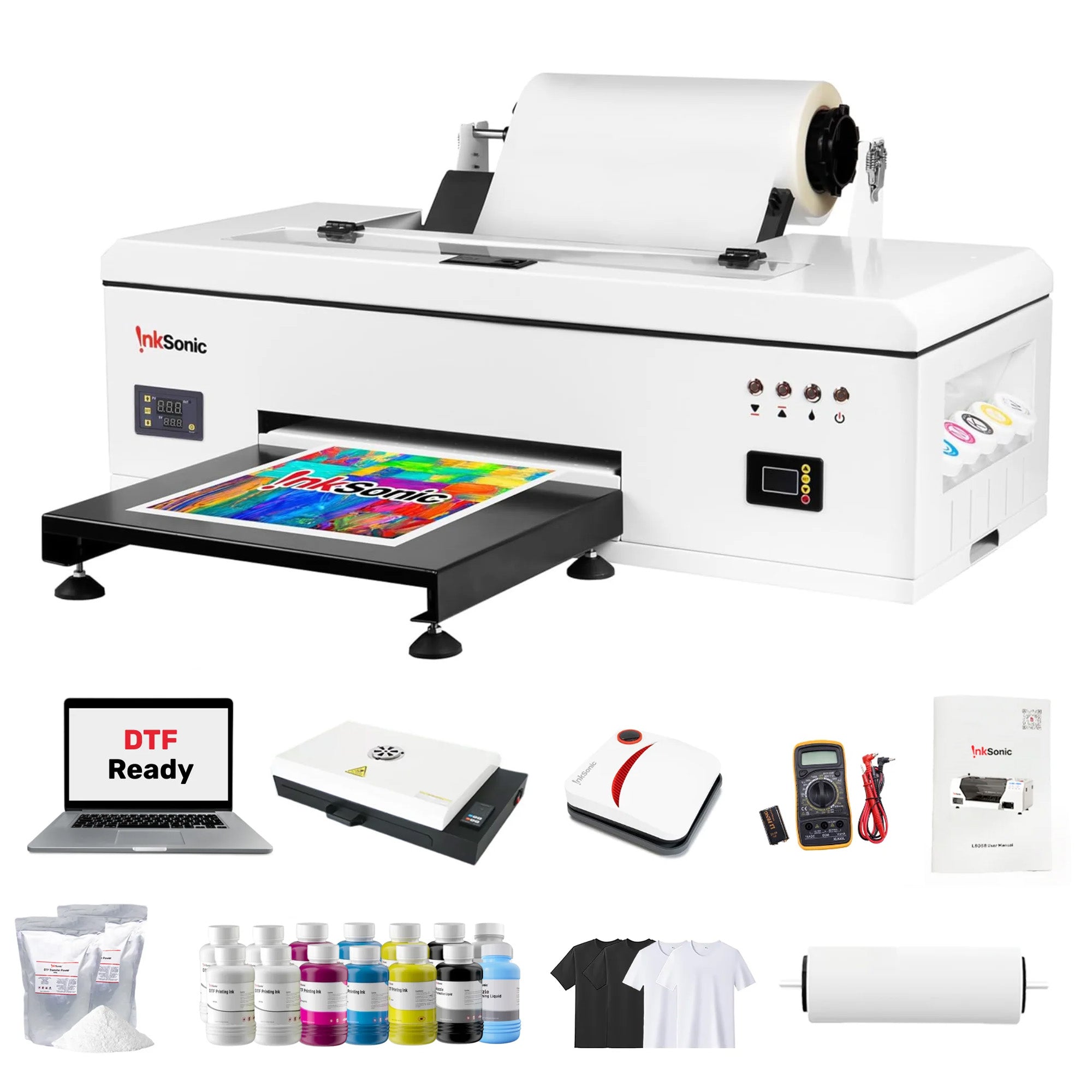

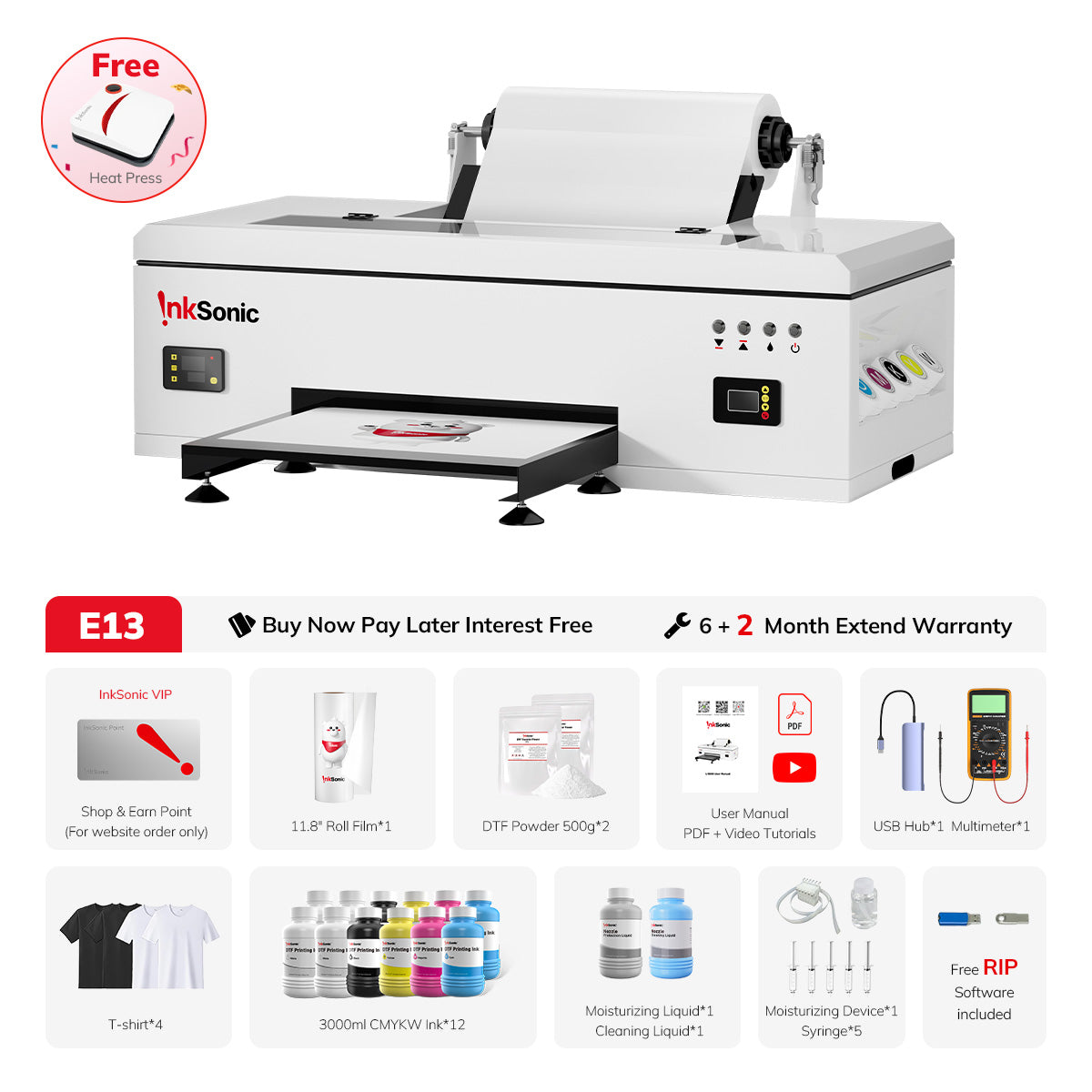

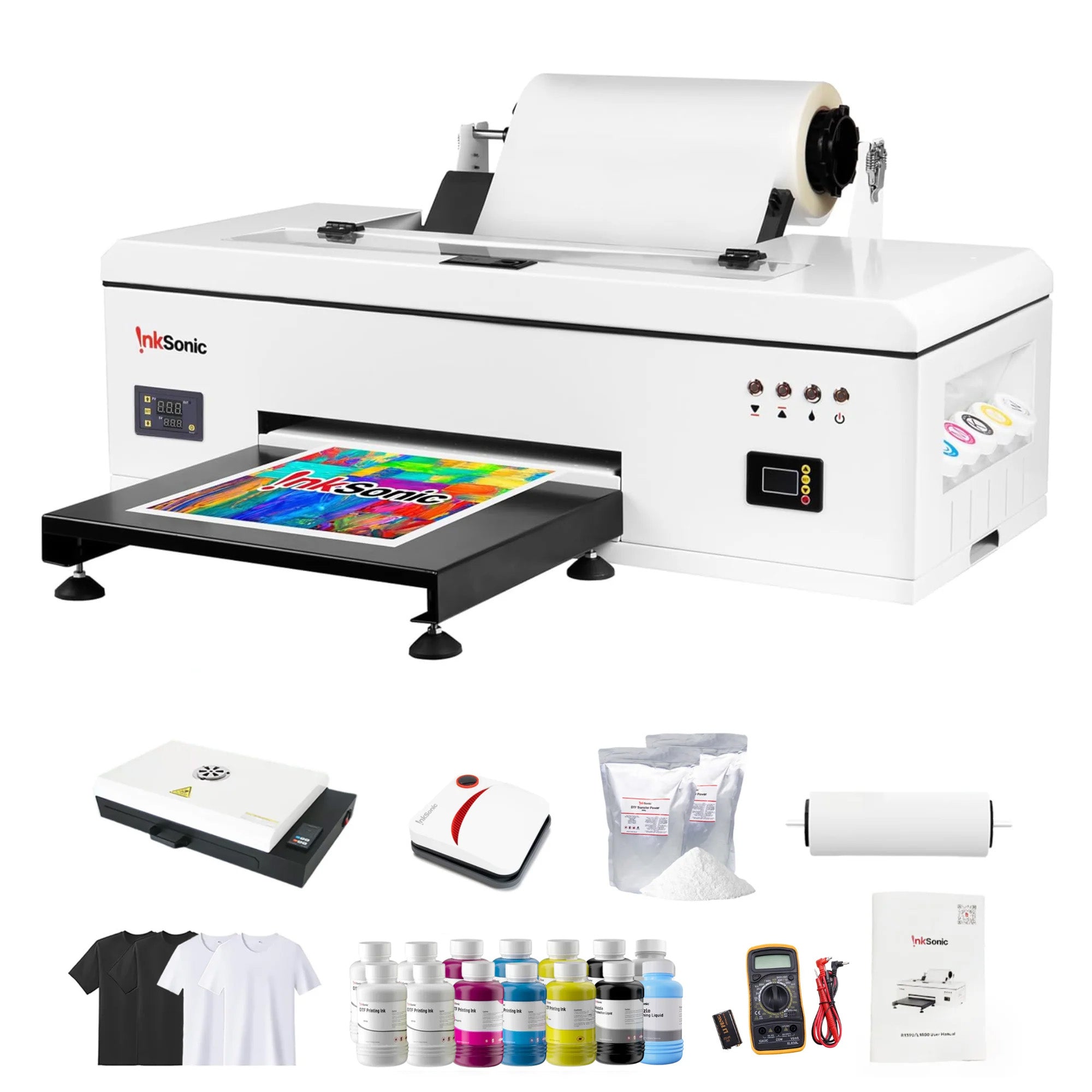

L1800 DTF Printer Bundle Includes
Essential Equipment
- L1800 A3 DTF Printer with Heating System
- 15×17cm/5.9×6.7in Handheld Heat Press (Free Gift)

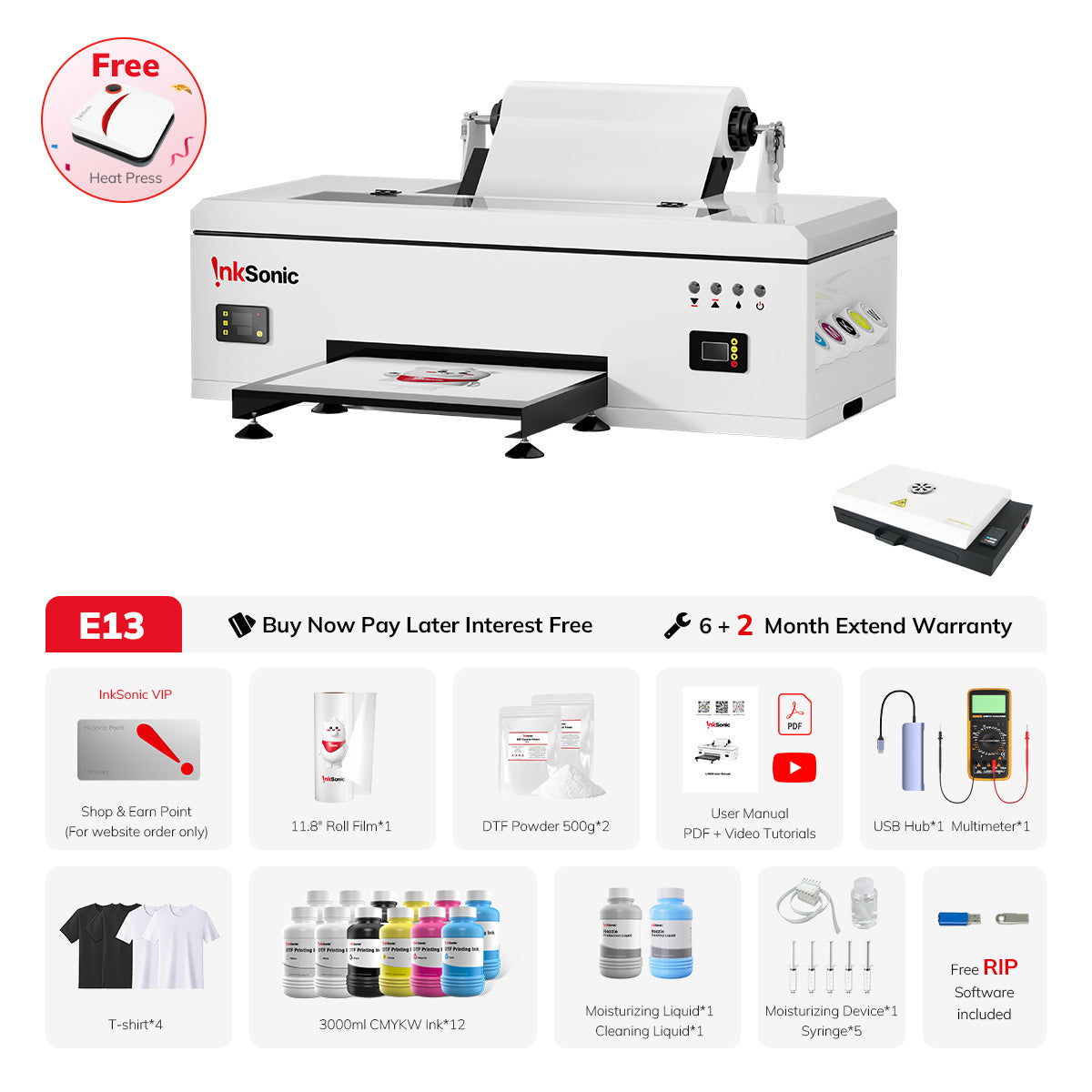

- 4-White Glass Light Tubes Oven (Optional)
- 15.6" Pre-installed Laptop (Optional)
Supplies
- Full Set of Installed Ink Cartridges Buy More
- 500g*2 Adhesive DTF PowderBuy More
- 250ml*10 CMYKW DTF Ink Buy More
- 250ml Nozzle Cleaning Liquid Buy More
- 250ml Nozzle Protection Liquid Buy More
- 100m 11.8" A3 PET Roll Film(Cold Peel) Buy More
- Extra Syringe*5
- 2 White T-shirts + 2 Black T-shirts Buy More
Maintenance&Tutorial
- RIP Software/USB Drive/Dongle
- Data Cable/Power Cord/Syringe
- User Manual Download PDF Version
- Tutorial Video on Youtube
- Moisturizing Device Buy More
Note: Supplies are sent in separate packages and are not included in the printer's wooden box.
Shipping & Delivery
- Free Shipping to US/AU/CA/EU/UK
- To US/CA/EU/UK, 3-7 Business Days Delivery via FedEx/UPS/DHL
- To other countries, check our Shipping Policy
Warranty Coverage
1. Print Head - 6-Month: The print head is covered by a 6-month warranty and one-time free replacement is guaranteed.
2. Other Accessories - 6 Months: We offer free unlimited technical diagnosis. If we locate your problem we will offer replacements. However, Please note that our warranty covers only defects or quality issues. Please note that printer accessories are consumables and will naturally wear out over time. To ensure optimal performance, we recommend regularly replacing relevant accessories.
Tax Information
● Ship to US/CA/UK/EU: Products shipped from local warehouse will not incur any tax/GST as InkSonic has already paid tax for you.
● Shipping to Other Countries: Though we tried our best to pre-pay the tax for our clients, some countries do not allow us to pre-pay tax/GST for you. If you have questions about custom clearance or need help with lowering the tax burden, please contact our online customer service and they will prepare you with relevant documents and guide you step-by-step!
Model：L1800 DTF( Direct-to-film printer )
Printer Specifications
Print Width: 300mm/11.8in
Channels: 6 channels
Motherboard: L1800
Printing Speed: A3/5-8 minutes
Highest Resolution: Recommend 1440*720 DPI, Maxium 2880*2880 DPI
Color: CMYK+WW
Ink Consumption: 10ml/㎡ (0.93 ml/ft²)
Nozzle Holes: 90 holes per channel
Number of Nozzles: 1
Working Environment
Operating System: Windows
Voltage: 110V/220V
Ease of Operation: Standard
Operating Temperature: 15℃-30℃/59°F-86°F
Working Humidity: 40%-60%
Life Increase: Standard
Shipping Information
Weight: 38Kg/84lbs
Dimension: 800×330×240mm/31.5×13.0×9.4 in
Package Size: 890×420×380mm/35.0×16.5×15.0 in
InkSonic Upgraded Feature
White Ink Circulation & Stirring & Filtration: Support Adjustable Speed
Air Suction Platform: Support Adjustable Speed
Waste Ink Collection: Support
Nozzle Self-cleaning: Support
Nozzle Moisturizing: Support
Visibal Ink Monitor: Support
Inspection Door: Motherboard: Support
Output Platform Heating: Support
Suitable for Medium-scale
The printer is capable of printing over 100+ pieces per day without making huge investment, making it the most cost-effective choice for a medium-scale POD business.
Products Features
A versatile and cost-effective solution for textilecustomization businesses

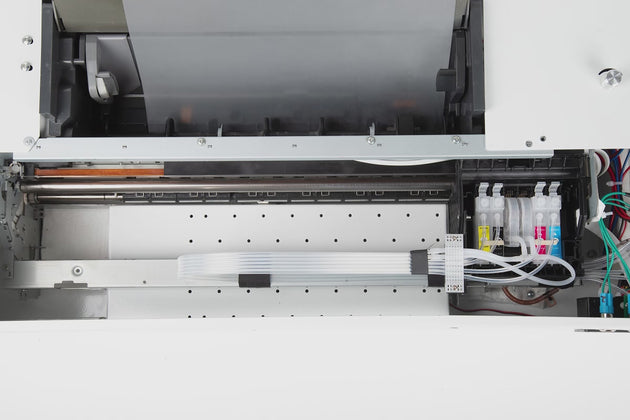

3-in-1 White Ink Circulation System
Our printers integrate white ink circulation, mixing, and filtration into a continuous ink supply system (CIS), which drastically improves the dynamism of the white ink and reduces sedimentation, thus extend print head lifetime 50% compared to traditional printers.

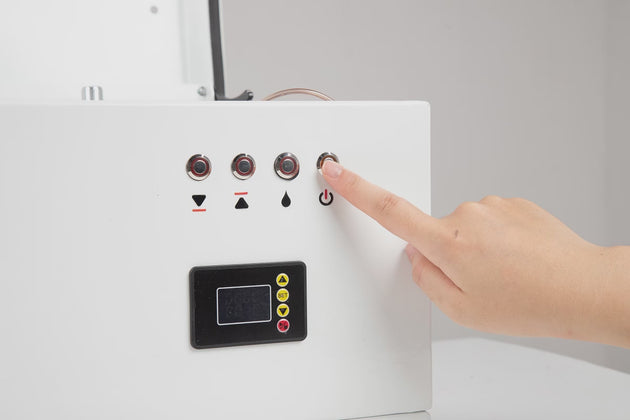

2-in-1 Automatic Cleaning System
An intuitive panel & software-driven self-cleaning function are installed to perform daily automatic printhead cleaning and nozzle checks. The ink collection pad prevents leaks and internal damage while the waste ink bottle collects used ink, maximizing printer uptime and reliability.
Air Suction & Smooth Film Loading System
The adjustable suction button enables precise control over the suction force, preventing the transfer film from curling or warping.The robust film-feeding mechanism ensures consistent, smooth, and jam-free film handling.

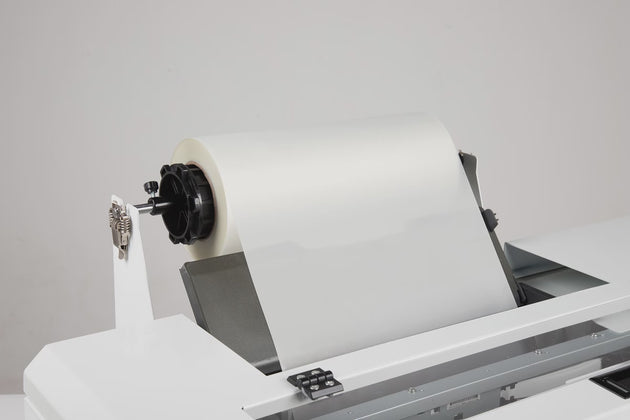

2 Convertible Film Modes: Sheet & Roll
While the roll feed enables efficient, high-volume printing, maximizing productivity for large-scale production, the sheet feed provides the versatility to handle individual media sheets, allowing you to print on demand and avoid waste.

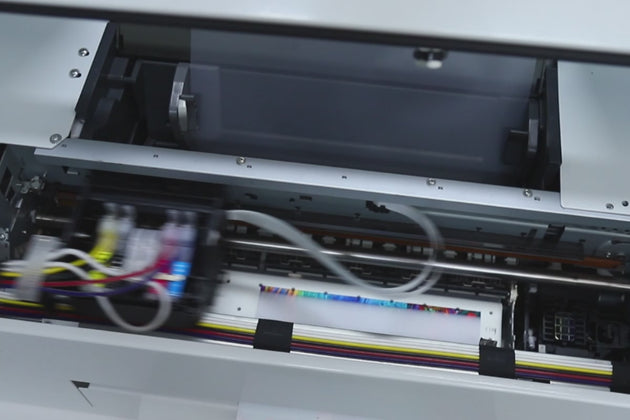

Visible Ink Level & Transparent Window
The transparent window monitors the printing process and detection abnormalities. Visible ink level prevents ink from running out & nozzle clogging.

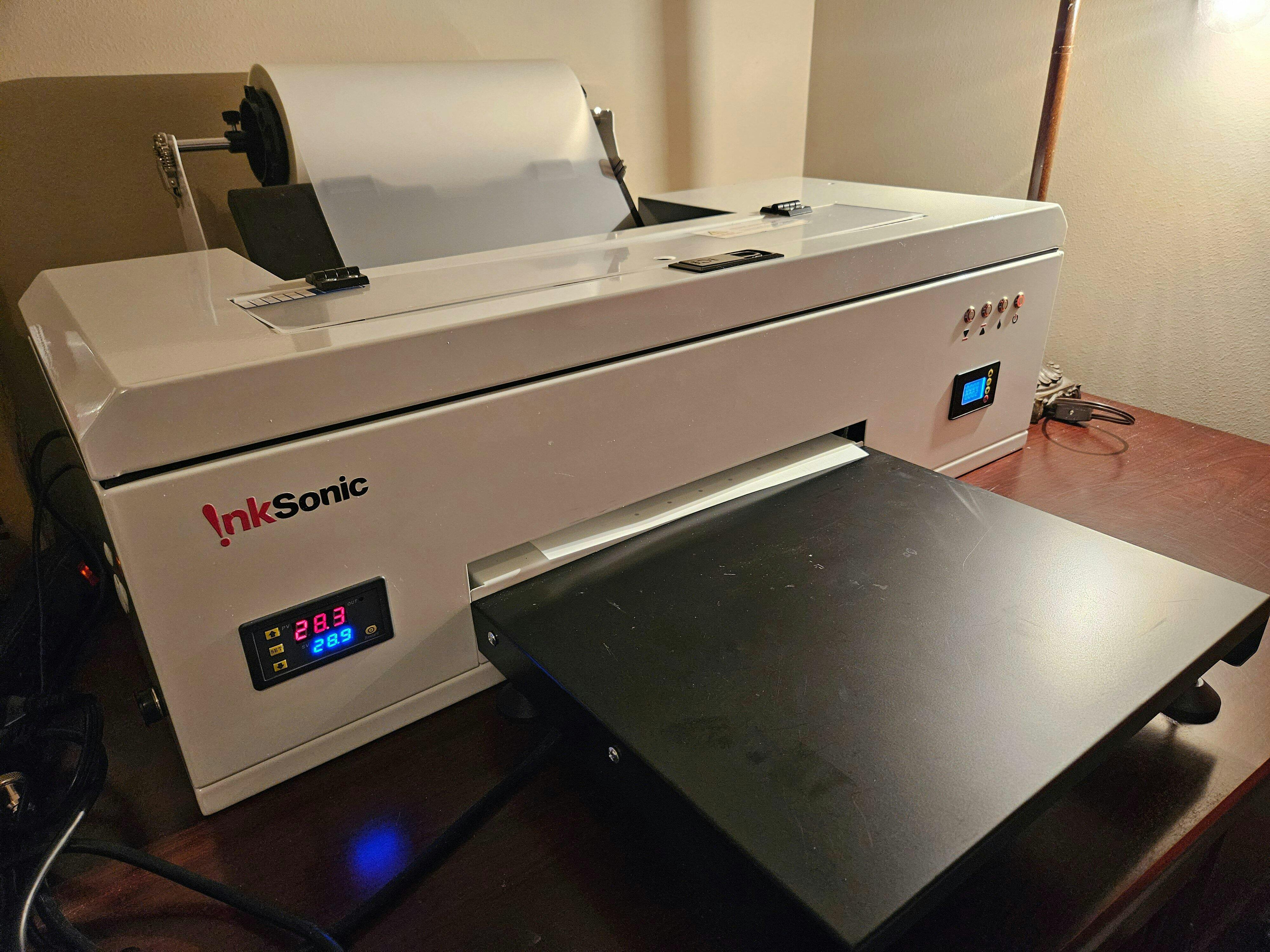

Output Flatform Heating Function
The temperature is around 50°C/122.0 °F, which can quickly solidify the pattern in extreme weather such as winter or cold areas, preventing ink flow & improving production efficiency significantly
InkSonic Exclusive Design
Moisturizing Device
The printhead is immersed in moisturizing liquid, which helps the printhead stay consistently hydrated, even during extended printer inactivity.
Ergonomic Handhold
An ergonomic cutout provides a simple handhold, allowing you to easily lift and detach the printer for seamless mobility and relocation.
Printer Cover Support
Securely hold the cover, preventing it from sagging or accidentally closing during open-cover procedures like ink extraction or ink pad exchange.

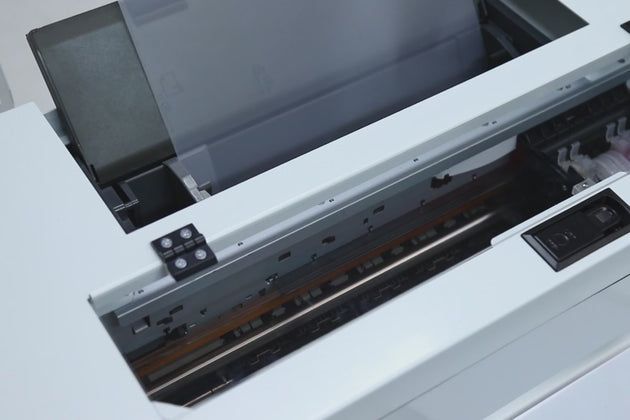

Inspection Door
The inspection door enables users to evaluate the condition of the motherboard or engine without disassembling the entire printer during maintenance.
Printing Steps
① Design on Computer
15-20 seconds
3-6 min
③ Shake Powder
5 seconds
④ Curing In Oven
150-180℃/302-356°F,6-30 seconds
⑤ Heat Press
135-160℃/275-320°F,30 seconds
⑥ Tear off PET Film
3 seconds
A3 Print Size for Versatile Applications
The A3 print size meets most of the customization needs, including shirts, flags,canvas bags and hats. It opens up opportunities of expanding customization services and customer base.
Canvas Bag
Earn $29
Bag
Earn $49
Canvas Shoes
Earn $39
Cap
Earn $19
Flag
Earn $29
T-shirt
Earn $19
Jersey
Earn $39
Pants
Earn $39
Canvas Bag
Earn $29
Bag
Earn $49
Canvas Shoes
Earn $39
Cap
Earn $19
Flag
Earn $29
T-shirt
Earn $19
Jersey
Earn $39
Pants
Earn $39
L1800 DTF Printer Specification
| Features/DTF Pinter Model | C13 | E13 | C13A | E13A | U13 | U13D | L13 | L8 |
|---|---|---|---|---|---|---|---|---|
 |
 |
 |
|
 |
 |
 |
 |
|
| Printhead | L1800 | L1800 | L1800 | L1800 | XP600 | XP600*2 | XP600 | XP600 |
| Print Size | 13inch | 13inch | 13inch | 13inch | 13inch | 13inch | 11.8inch | 8inch |
| Occupies | 28.75*11.2 inch (730*300mm) | 28.75*11.2 inch (730*300mm) | 28.75*11.2 inch (730*300mm) | 28.75*11.2 inch (730*300mm) | 25.6*13.39inch (650*340mm) | 25.6*13.39inch (650*340mm) | 20.87*14.97inch (530*380mm) | 15.95*14.18inch (405*360mm) |
| Print Speed | A3/5-8 mins | A3/5-8 mins | A3/4-6 mins | A3/4-6 mins | A3/3-5 mins | A3/2-4 mins | A3/3-5 mins | A4/2-4 mins |
| Unit per Hour | 8 | 8 | 10 | 10 | 12 | 20 | 12 | 15 |
| DTF Supplies Cost per T-shirt | ＄5.8 | ＄5.8 | ＄5.8 | ＄5.8 | ＄5.8 | ＄5.8 | ＄5.8 | ＄5.8 |
| Maximum Print Resolution | 2880x1440 DPI | 2880x1440 DPI | 2880x1440 DPI | 2880x1440 DPI | 2880x720 DPI | 2880x720 DPI | 1440x1440 DPI | 1440x1440 DPI |
| Color Reproduction | 100% | 100% | 100% | 100% | 98% | 98% | 98% | 98% |
| RIP Software Features | Ordinary | Ordinary | Advanced | Advanced | Advanced | Advanced | Ordinary | Ordinary |
| Suitable Material | Almost All Fabrics | Almost All Fabrics | Almost All Fabrics | Almost All Fabrics | Almost All Fabrics | Almost All Fabrics | Almost All Fabrics | Almost All Fabrics |
| Working Environment | Normal | Normal+Cold | Normal | Normal+Cold | Normal+Cold | Normal+Cold | Normal | Normal |
| Heating Tray | / | ✔ | / | ✔ | ✔ | ✔ | / | / |
| Film Cutter | / | / | ✔ | ✔ | ✔ | ✔ | / | / |
| First Automatic Ink Filling | / | / | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Air Suction System | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | / | / |
| With Shaker & Dryer | X | X | X | X | ✔ | ✔ | X | X |
| Warranty | 6 Months | 6 Months | 6 Months | 6 Months | 6 Months | 6 Months | 6 Months | 6 Months |
| Holiday Auto Nozzle Cleaning | / | / | / | / | ✔ | ✔ | / | / |
| Nozzle Cleaning Frequency | Every 3 Days | Every 3 Days | Every 3 Days | Every 3 Days | Every 2 Days | Every 2 Days | Every 2 Days | Every 2 Days |
| Maintenance Frequency | Rarely | Seldom | Rarely | Seldom | Occasionally | Occasionally | Rarely | Rarely |
| Ease of Maintenance | Moderate | Moderate | Easy | Easy | Very Easy | Very Easy | Very Easy | Very Easy |
| Ink Anti-clogging | Circulation, Mixing, Filtration | Circulation, Mixing, Filtration | Circulation, Mixing, Filtration | Circulation, Mixing, Filtration | Circulation, Mixing, Filtration | Circulation, Mixing, Filtration | Circulation, Mixing | Circulation, Mixing |
| Powerful Ink Flush | / | ✔ | / | ✔ | ✔ | ✔ | ✔ | ✔ |
You May Curious About
Read frequently asked questions and clear your doubts!
What is the difference between C13 R1390 and E13 L1800?
The printhead is the same in the R1390 & L1800 DTF Printer. The main differences between the R1390 and L1800 are:
- Motherboard: The L1800 features a more stable motherboard compared to the R1390.
- Output Platform Heating Feature: The L1800 includes output platform heating designed for customers who live in cold weather area, which helps prevent ink flow and ensures optimal print quality. This feature is not available on the R1390.
- Power Ink Flush: If the printhead is clogged, the L1800 can try to repair the printhead by completing a powerful ink flushing, so the life of the nozzle will be longer. However, the R1390 does not have this powerful flushing function.
Other parameters are compared in this chart.
Do you offer guidance on how to install a printer from 0-1?
Don't worry! We provide comprehensive support to give you peace of mind of your order:
- Detailed Instruction Manual: You will receive a printed instruction manual and an electronic version (included on the delivered USB drive), which includes clear steps and images.
- Operation Videos: The USB drive also contains operation videos that visually demonstrate the installation process.
- Remote Technical Support: If you encounter any problems, you can directly contact our email support@inksonic.com. We offer free remote technical support to help you resolve issues smoothly.
- YouTube Channel: Our YouTube channel regularly updates with the latest problem solutions and maintenance tutorials, giving you access to the most current information.
We are committed to providing you with a worry-free installation experience, making it easy for you to get started with our products!
Is the RIP software compatible with Mac OS?
Compatibility depends on the model you purchased. Our RIP software is officially supported only on Windows. To use it on macOS, you need to install a Windows virtual machine using virtualization tools (e.g., Parallels Desktop).
For C13 / E13 / L8 / L13:
Only Macs with Intel CPUs (generally models produced before 2021) are compatible.
For U13 / U13D / VF13:
Fully compatible in a virtual environment.
How long is the warranty for the printer?
1. Print Head - 6-Month The print head is covered by a 6-month warranty and one-time free replacement is guaranteed.*Range: C13/E13/L8/L13/U13/VF13.
2. Other Accessories - 6 Months We offer free unlimited technical diagnosis. If we locate your problem we will offer replacements. However, Please note that our warranty covers only defects or quality issues. Please note that printer accessories are consumables and will naturally wear out over time. To ensure optimal performance, we recommend regularly replacing relevant accessories.
Is the daily maintenance complicated?
Not at all. We have provided clear daily maintenance plan and guide in our user manual. You can do daily maintenance in just 5 minutes.
How much does shipping cost? Can I pick-up at your local warehouse?
Curreently, InkSonic provides a worldwide free shipping service for all printers.
Free self pick-up is available in our California warehouse, please leave a note for requesting pickup service, we will arrange it immediately.
How to schedule a time with remote service? What is covered & is it free?
Please contact our email at support@inksonic.com, online service or through WhatsApp. We will schedule a remoted service time for you asap. We will help you solve all problems until you are satisfied with our product and service. It's free and unlimited forever.
Can I get my money back if I'm not satisfied?
Though much effort was invested, we understand that you may regret or mistakenly purchase an order that you no longer need. At InkSonic, we offer an easy returns policy and aim to find solutions that benefit both of us. Please review our return policy below.
